EDM machine（BED type series）
Product name: EDM machine（BED type series）
Category: EDM BED serise
Product introduction:
ZNC350BL+35A
X-axis travel: 350mm, Y-axis travel: 250mm, Z-axis travel: 180mm, W-axis (quill) travel: 180mm, max. distance from electrode flat face to table top: 420mm, max. electrode weight: 100kg. Work table length: 600mm, width: 320mm, max. load capacity: 800kg. Positioning accuracy: 0.01mm, repeat positioning accuracy: 0.005mm. Max. spindle speed: 2000rpm, Z-axis motor power: 0.4kW, screw pitch: 5mm, rapid traverse: 5m/min. Z-axis drive: servo drive, servo motor: domestic AC 400W, Z-axis rail: parallel linear guide (Taiwan brand), XY-axis rail: V-shaped guide (Taiwan brand). Z-axis screw: ball screw (Taiwan brand), XY-axis screw: ball screw (Taiwan brand), optical scale: Wanhao 5u. Machine net weight: 1150kg, floor space (L×W×H): 1500×1500×1950mm, work tank dimensions: 850×540×300mm, column width: 210mm, base width: 1200mm (sheet metal), table height from floor: 1060mm, work tank integrated with machine, tank capacity: 300L. Power supply: AC380V 50Hz, max. power consumption: 5kVA, control cabinet: Ultra-fine version.
------------------------------------------------------------------------------------------------------------
ZNC450BL+50A
X-axis travel: 450mm, Y-axis travel: 350mm, Z-axis travel: 200mm, W-axis (quill) travel: 250mm, max. distance from electrode flat face to table top: 450mm, max. electrode weight: 150kg. Work table length: 700mm, width: 400mm, max. load capacity: 1000kg. Positioning accuracy: 0.01mm, repeat positioning accuracy: 0.005mm. Max. spindle speed: 2000rpm, Z-axis motor power: 0.4kW, screw pitch: 5mm, rapid traverse: 5m/min. Z-axis drive: servo drive, servo motor: domestic AC 400W, Z-axis rail: linear guide (Taiwan brand), XY-axis rail: V-shaped guide (Taiwan brand). Z-axis screw: ball screw (Taiwan brand), XY-axis screw: ball screw (Taiwan brand), optical scale: Wanhao 5u. Machine net weight: 1550kg, floor space (L×W×H): 1470×180×2050mm, work tank dimensions: 1050×670×400mm, column width: 290mm, base width: 710mm (casting), table height from floor: 880mm, work tank net weight: 150kg, tank capacity: 400L. Power supply: AC380V 50Hz, max. power consumption: 5kVA, control cabinet: Ultra-fine version.
------------------------------------------------------------------------------------------------------------
ZNC540BL+50A
X-axis travel: 500mm, Y-axis travel: 400mm, Z-axis travel: 200mm, W-axis (quill) travel: 250mm, max. distance from electrode flat face to table top: 580mm, max. electrode weight: 150kg. Work table length: 800mm, width: 400mm, max. load capacity: 1500kg. Positioning accuracy: 0.01mm, repeat positioning accuracy: 0.005mm. Max. spindle speed: 3000rpm, Z-axis motor power: 0.4kW, screw pitch: 5mm, rapid traverse: 5m/min. Z-axis drive: servo drive, servo motor: domestic AC 400W, Z-axis rail: linear guide (Taiwan brand), XY-axis rail: V-shaped guide (Taiwan brand). Z-axis screw: ball screw (Taiwan brand), XY-axis screw: ball screw (Taiwan brand), optical scale: Wanhao 5u. Machine net weight: 1740kg, floor space (L×W×H): 1640×1460×2140mm, work tank dimensions: 1650×1100×630mm, column width: 280mm, base width: 740mm (casting), table height from floor: 880mm, work tank net weight: 180kg, tank capacity: 460L. Power supply: AC380V 50Hz, max. power consumption: 5kVA, control cabinet: Ultra-fine version.
------------------------------------------------------------------------------------------------------------

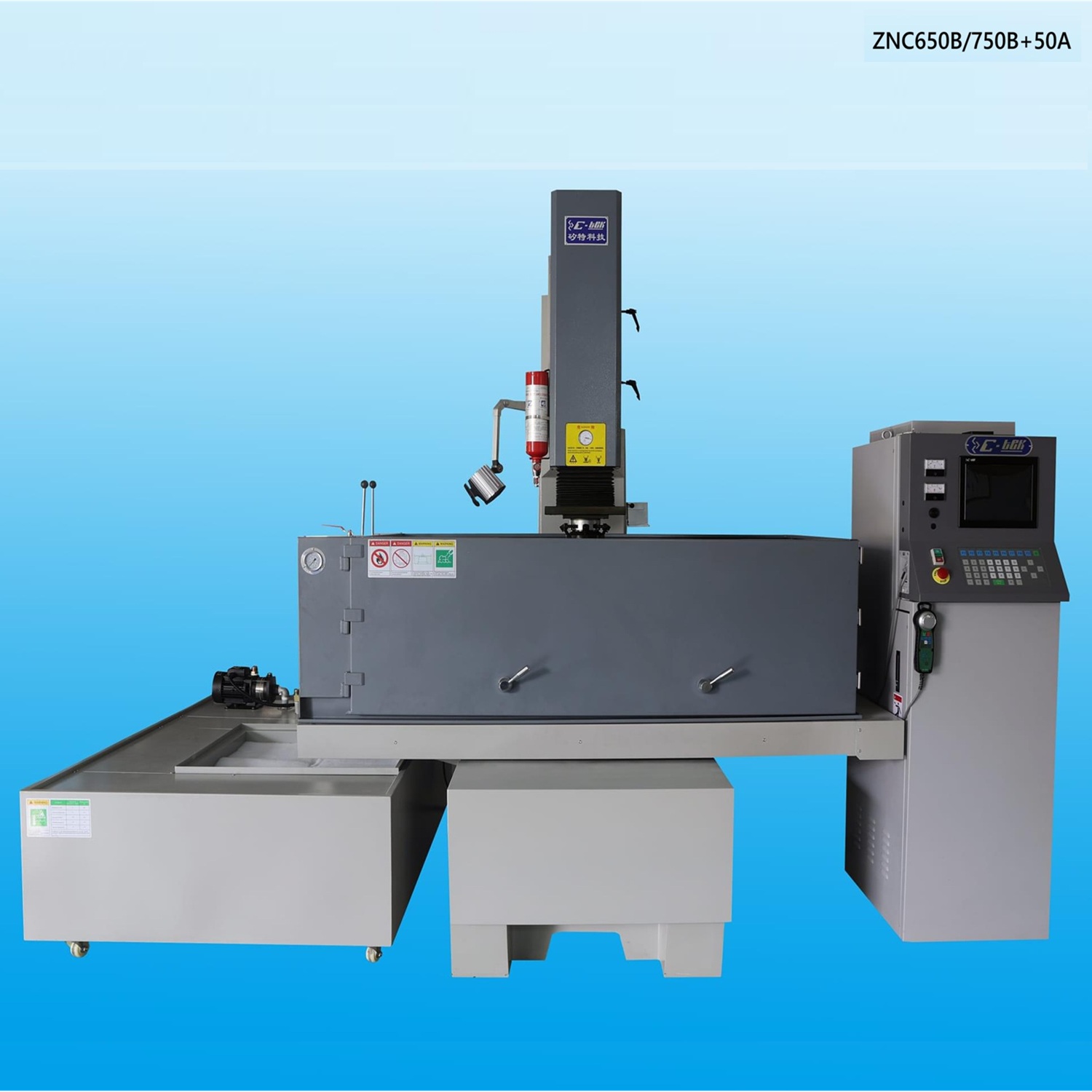

ZNC650B+50A
X-axis travel: 650mm, Y-axis travel: 500mm, Z-axis travel: 250mm, W-axis (quill) travel: 250mm, max. distance from electrode flat face to table top: 750mm, max. electrode weight: 200kg. Work table length: 1100mm, width: 600mm, max. load capacity: 2000kg. Positioning accuracy: 0.01mm, repeat positioning accuracy: 0.005mm. Max. spindle speed: 3000rpm, Z-axis motor power: 0.4kW, screw pitch: 5mm, rapid traverse: 5m/min. Z-axis drive: servo drive, servo motor: domestic AC 400W, Z-axis rail: linear guide (Taiwan brand), XY-axis rail: V-shaped guide (Taiwan brand). Z-axis screw: ball screw (Taiwan brand), XY-axis screw: ball screw (Taiwan brand), optical scale: Wanhao 5u. Machine net weight: 2780kg, floor space (L×W×H): 4000×2400×2700mm, work tank dimensions: 1770×980×590mm, column width: 390mm, base width: 910mm (casting), table height from floor: 880mm, work tank net weight: 210kg, tank capacity: 800L. Power supply: AC380V 50Hz, max. power consumption: 5kVA, control cabinet: Ultra-fine version.
------------------------------------------------------------------------------------------------------------
ZNC750B+50A
X-axis travel: 750mm, Y-axis travel: 500mm, Z-axis travel: 250mm, W-axis (quill) travel: 250mm, max. distance from electrode flat face to table top: 750mm, max. electrode weight: 200kg. Work table length: 1100mm, width: 600mm, max. load capacity: 2000kg. Positioning accuracy: 0.10mm, repeat positioning accuracy: 0.100mm. Max. spindle speed: 3000rpm, Z-axis motor power: 0.4kW, screw pitch: 5mm, rapid traverse: 5m/min. Z-axis drive: servo drive, servo motor: domestic AC 400W, Z-axis rail: linear guide (Taiwan brand), XY-axis rail: V-shaped guide (Taiwan brand). Z-axis screw: ball screw (Taiwan brand), XY-axis screw: ball screw (Taiwan brand), optical scale: Wanhao 5u. Machine net weight: 3600kg, floor space (L×W×H): 2600×1950×2600mm, work tank dimensions: 1770×980×590mm, column width: 390mm, base width: 910mm (casting), table height from floor: 880mm, work tank net weight: 210kg, tank capacity: 800L. Power supply: AC380V 50Hz, max. power consumption: 5kVA, control cabinet: Ultra-fine version.
------------------------------------------------------------------------------------------------------------
ZNC50A Control Cabinet Parameters
X, Y, Z minimum setting unit: 0.005 mm
X, Y, Z maximum setting unit: 9999.995 mm
Coordinate system: Incremental (INC), Absolute (ABS)
Screen display: 12.1" LCD industrial monitor
Program file storage: 1000+ groups
(Remote control) jog feed rate: 0.005 (per unit) X1, X5, X10
Max. machining current: OA-50A
Max. machining speed: 540 mm/min
Electrode wear ratio: < 0.2%
Best surface finish: 0.23 µmRa
Machining setting groups: 30 groups
Machining setting segments: 10 segments
Power requirement: 6.5 kVA
Control cabinet net weight: 290 kg
Machine Accessories
Z-axis linear guide rail: 6350p, Taiwan TBI, specification 2505×600×700
X, Y ball screws: Taiwan TBI/TBT, specification 2505×700×800
Z-axis plastic steel screw: Changhua, specification 2505×390 / 2505×430
AC servo motor: 400W, Hechuan (Kawasaki)
Quartz lamp: LED 24V, Jiaomao (Chiaomao)
Temperature-sensing fire extinguisher: 2KG, Jiaomao (Chiaomao)
Three-axis optical scale: Taiwan Wanhao (Wanhao)
Filter screen: Gaoke (High-Tech)
Oil jet pipe: 1.5mm, Taiwan Yudi (Yudi)
Automatic lubricator (for CNC model): 1.5L, Yujing (Yujing)
Lubricator (for ZNC model): 1.5L, Yujing (Yujing)
Electrode head: 75KG, Huilong (Huilong)
450 casting: HT250, 1300KG, gray cast iron HT250
540 casting: HT250, 1500KG, gray cast iron HT250
------------------------------------------------------------------------------------------------------------
Economy Models:
ZNC350BE+35A
X-axis travel: 350mm, Y-axis travel: 250mm, Z-axis travel: 180mm, W-axis (quill) travel: 180mm, max. distance from electrode flat face to table top: 400mm, max. electrode weight: 50kg. Work table length: 600mm, width: 320mm, max. load capacity: 600kg. Positioning accuracy: 0.01mm, repeat positioning accuracy: 0.005mm. Max. spindle speed: 2000rpm, Z-axis motor power: 0.4kW, screw pitch: 5mm, rapid traverse: 5m/min. Z-axis drive: servo drive, servo motor: domestic DC Sanyo, Z-axis rail: parallel linear guide (Taiwan brand), XY-axis rail: V-shaped guide (Taiwan brand). Z-axis screw: ball screw (Taiwan brand), XY-axis screw: ball screw (Taiwan brand), optical scale: Wanhao 5u. Machine net weight: 1050kg, floor space (L×W×H): 1150×1300×1900mm, work tank dimensions: 1080×800×350mm, column width: 210mm, base width: 1150mm (sheet metal), table height from floor: 960mm, work tank integrated with machine, tank capacity: 300L. Power supply: AC380V 50Hz, max. power consumption: 5kVA, control cabinet: Ultra-fine version.
ZNC450BE+50A (Standard Type)
X-axis travel: 450mm, Y-axis travel: 350mm, Z-axis travel: 200mm, W-axis (quill) travel: 200mm, max. distance from electrode flat face to table top: 450mm, max. electrode weight: 120kg. Work table length: 700mm, width: 400mm, max. load capacity: 1000kg. Positioning accuracy: 0.01mm, repeat positioning accuracy: 0.005mm. Max. spindle speed: 2000rpm, Z-axis motor power: 0.4kW, screw pitch: 5mm, rapid traverse: 5m/min. Z-axis drive: servo drive, servo motor: domestic DC Sanyo, Z-axis rail: parallel linear guide (domestic), XY-axis rail: V-shaped guide (domestic). Z-axis screw: standard screw (domestic), XY-axis screw: ball screw (domestic), optical scale: Wanhao 5u. Machine net weight: 1350kg, floor space (L×W×H): 1350×1180×2100mm, work tank dimensions: 1000×650×370mm, column width: 260mm, base width: 650mm (casting), table height from floor: 880mm, work tank integrated with machine, tank capacity: 350L. Power supply: AC380V 50Hz, max. power consumption: 5kVA, control cabinet: Standard version.
ZNC450BE+50A (Economy Integrated Type)
X-axis travel: 450mm, Y-axis travel: 350mm, Z-axis travel: 200mm, W-axis (quill) travel: 200mm, max. distance from electrode flat face to table top: 500mm, max. electrode weight: 120kg. Work table length: 750mm, width: 420mm, max. load capacity: 1000kg. Positioning accuracy: 0.01mm, repeat positioning accuracy: 0.005mm. Max. spindle speed: 2000rpm, Z-axis motor power: 0.4kW, screw pitch: 5mm, rapid traverse: 5m/min. Z-axis drive: servo drive, servo motor: domestic DC Sanyo, Z-axis rail: parallel linear guide (domestic), XY-axis rail: V-shaped guide (domestic). Z-axis screw: standard screw (domestic), XY-axis screw: ball screw (domestic), optical scale: Wanhao 5u. Machine net weight: 1300kg, floor space (L×W×H): 1470×1180×2050mm, work tank dimensions: 1050×660×420mm, column width: 260mm, base width: 650mm (casting), table height from floor: 820mm, work tank net weight: 140kg, tank capacity: 400L. Power supply: AC380V 50Hz, max. power consumption: 5kVA, control cabinet: Standard version.
ZNC540BE+50A (Economy Separate Type)
X-axis travel: 500mm, Y-axis travel: 400mm, Z-axis travel: 200mm, W-axis (quill) travel: 250mm, max. distance from electrode flat face to table top: 580mm, max. electrode weight: 150kg. Work table length: 750mm, width: 420mm, max. load capacity: 1500kg. Positioning accuracy: 0.01mm, repeat positioning accuracy: 0.005mm. Max. spindle speed: 2000rpm, Z-axis motor power: 0.4kW, screw pitch: 5mm, rapid traverse: 5m/min. Z-axis drive: servo drive, servo motor: domestic AC 400W, Z-axis rail: parallel linear guide (domestic), XY-axis rail: V-shaped guide (domestic). Z-axis screw: ball screw (domestic), XY-axis screw: ball screw (domestic), optical scale: Wanhao 5u. Machine net weight: 1450kg, floor space (L×W×H): 1640×1460×2140mm, work tank dimensions: 1250×790×510mm, column width: 280mm, base width: 680mm (casting), table height from floor: 850mm, work tank net weight: 180kg, tank capacity: 460L. Power supply: AC380V 50Hz, max. power consumption: 5kVA, control cabinet: Standard version.
------------------------------------------------------------------------------------------------------------
Common Control Cabinet Parameters (ZNC50A)
X, Y, Z minimum setting unit: 0.005 mm
X, Y, Z maximum setting unit: 9999.995 mm
Coordinate system: Incremental (INC), Absolute (ABS)
Screen display: 12.1" LCD industrial monitor
Program file storage: 1000+ groups
(Remote control) jog feed rate: 0.005 (per unit) X1, X5, X10
Max. machining current: OA-50A
Max. machining speed: 540 mm/min
Electrode wear ratio: <0.2%
Best surface finish: 0.23 µmRa
Machining setting groups: 30 groups
Machining setting segments: 10 segments
Power requirement: 6.5 kVA
Control cabinet net weight: 290 kg
------------------------------------------------------------------------------------------------------------
CNC EDM Machine
CNC450LE+50A
X-axis travel: 450mm, Y-axis travel: 350mm, Z-axis travel: 200mm, W-axis (quill) travel: 200mm, max. distance from electrode flat face to table top: 450mm, max. electrode weight: 120kg. Screw pitch: 5mm, rapid traverse: 5m/min, Z-axis drive system: servo drive, servo motor: domestic DC Sanyo, Z-axis rail structure: parallel linear guide (domestic), XY-axis rail structure: V-shaped guide (Taiwan brand). Z-axis screw: standard screw (domestic), XY-axis screw: ball screw (domestic), optical scale: Taiwan Wanhao 5u. Work table length: 700mm, width: 400mm, max. load capacity: 800kg. Column width: 260mm, base width: 650mm (casting), table height from floor: 820mm, work tank net weight: 150kg, tank capacity: 400L. Positioning accuracy: 0.01mm, repeat positioning accuracy: 0.005mm. Max. spindle speed: 2000rpm, Z-axis motor power: 0.4kW. Machine net weight: 1350kg, floor space (L×W×H): 1470×1180×2050mm, work tank dimensions: 1000×650×370mm. Power supply: AC380V 50Hz, max. power consumption: 5kVA, control cabinet: Standard version.
CNC-50A Control Cabinet Parameters
X, Y, Z minimum setting unit: 0.005 mm, maximum setting unit: 9999.995 mm. Coordinate system: Incremental (INC), Absolute (ABS). Screen display: 15" LCD industrial monitor. Program file storage: 1000+ groups. (Remote control) jog feed rate: 0.005 (per unit) X1, X5, X10. Max. machining current: OA-50A, max. machining speed: 700 mm/min, electrode wear ratio: <0.2%, best surface finish: 0.08 µmRa. Machining setting groups: 30 groups, machining setting segments: 10 segments. Power requirement: 7.5 kVA, control cabinet net weight: 290 kg, control cabinet dimensions (W×D×H): 830×840×1850 mm, packaging dimensions: 930×940×2050 mm.
Complete Machine Accessories Details (Machine Part)
Z-axis linear guide rail: 6350p, Taiwan TBI, specification 2505×600×700
X, Y ball screws: Taiwan TBI/TBT, specification 2505×700×800
Z-axis plastic steel screw: Changhua, specification 2505×390 / 2505×430
AC servo motor: 400W, Hechuan (Kawasaki)
Quartz lamp: LED 24V, Jiaomao (Chiaomao)
Temperature-sensing fire extinguisher: 2KG, Jiaomao (Chiaomao)
Three-axis optical scale: Taiwan Wanhao
Filter screen: Gaoke (High-Tech)
Oil jet pipe: 1.5mm, Taiwan Yudi
Automatic lubricator (for CNC model): 1.5L, Yujing
Lubricator (for ZNC model): 1.5L, Yujing
Electrode head: 75KG, Huilong
450 casting: HT250, 1300KG, gray cast iron HT250
540 casting: HT250, 1500KG, gray cast iron HT250
